Product Overview
XPC-150-NC is a 15-inch industrial touch display developed by Nabote specifically for industrial automation scenarios. The product features a rugged metal housing and embedded mounting design. The front panel is equipped with an emergency stop knob, tri-color indicator button, and a front USB port, perfectly fitting Human-Machine Interaction (HMI) requirements in industrial sites.
The device supports VGA and HDMI dual video input, equipped with a 10-point projected capacitive touch screen. It can be connected to a host (IPC / controller) via the USB touch interface — plug and play, no additional drivers required. It is widely used in industrial robot teaching, equipment monitoring, production line data display, and other core scenarios.
Product Advantages
Industrial Large Screen, Reliable Touch
A 15-inch industrial-grade LCD display with 1024 × 768 resolution and 350 nits high brightness remains clearly visible even under strong workshop lighting. Using projected capacitive touch technology, it supports 10-point concurrent touch with responsive performance, and fully supports wet-hand and thin-glove operation. The backlight life reaches 50,000 hours, suitable for long-term continuous operation.
Built for the Field
The front panel integrates an emergency stop knob, tri-color indicator button, and a front USB port, fulfilling the most common industrial field control needs in one stop. 24V DC power supply with typical power consumption of only 9.8W, energy-efficient. The embedded mounting design, with standard snap-in brackets, enables fast fixation and fits various control cabinets and consoles.
Flexible Access, Plug and Play
Provides VGA + HDMI dual video input, compatible with various IPCs, industrial controllers and embedded mainboards. The USB Type-B touch interface connects directly to the host, driver-free. Standard 6-pin and 7-pin GX12 aviation connector control cables enable fast connection to external start/stop and emergency stop signals, simplifying field wiring.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Display Size | 15 inch | Resolution | 1024×768 |
| Brightness | 350 nits (typical) | Backlight Life | 50,000 hours (typical) |
| Touch Screen | 10-point projected capacitive touch | Video Input | 1×VGA, 1×HDMI |
| USB Interface | 1×USB Type-B (touch), 1×USB Type-A (front) | Power Input | DC 24V |
| Power Consumption | 9.8W (typical) | Weight | 3.4 kg |
| Dimensions | 353.2 × 334.8 mm | Mounting Method | Embedded mounting |
| Front Panel | Emergency stop knob ×1, indicator buttons ×3, front USB ×1 | Control Interface | GX12 6-pin ×1, GX12 7-pin ×1 |
Interface Definition
6-pin GX12 Interface
| Pin | Signal | Pin | Signal |
|---|---|---|---|
| 1 | Power Positive 24V | 4 | E-Stop GND |
| 2 | Pause Signal | 5 | E-Stop Signal |
| 3 | Power Negative 0V | 6 | Pause GND |
7-pin GX12 Interface
| Pin | Signal | Pin | Signal |
|---|---|---|---|
| 1 | Start Switch | 5 | Stop Signal |
| 2 | Power Positive 24V | 6 | Stop GND |
| 3 | Power Negative | 7 | Start Signal |
| 4 | Power Positive 24V | — | — |
Application Scenarios
Industrial Robot Teaching & Monitoring
As the display and control terminal of the robot controller, it shows robot running status, joint angles, I/O status, and other key information in real time. The front-panel emergency stop and start/stop buttons enable rapid response in emergencies, ensuring operational safety.
Production Line Equipment Control Panel
Embedded in the automation line control cabinet, replacing traditional button panels and indicator lamps, the large touch screen implements parameter setting, status monitoring, alarm viewing, etc., simplifying panel layout and improving the operating experience.
Package List
| Item | Specification | Qty |
|---|---|---|
| Industrial Touch Display | 15" capacitive screen, with operation buttons | 1 |
| HDMI HD Display Cable | 1.5 m | 1 |
| USB Touch Cable | 1.5 m USB Type-B to Type-A | 1 |
| Embedded Mounting Brackets | — | 4 |
| GX12-6P Female Control Cable | 1.5 m, 6-pin | 1 |
| GX12-7P Female Control Cable | 1.5 m, 7-pin | 1 |

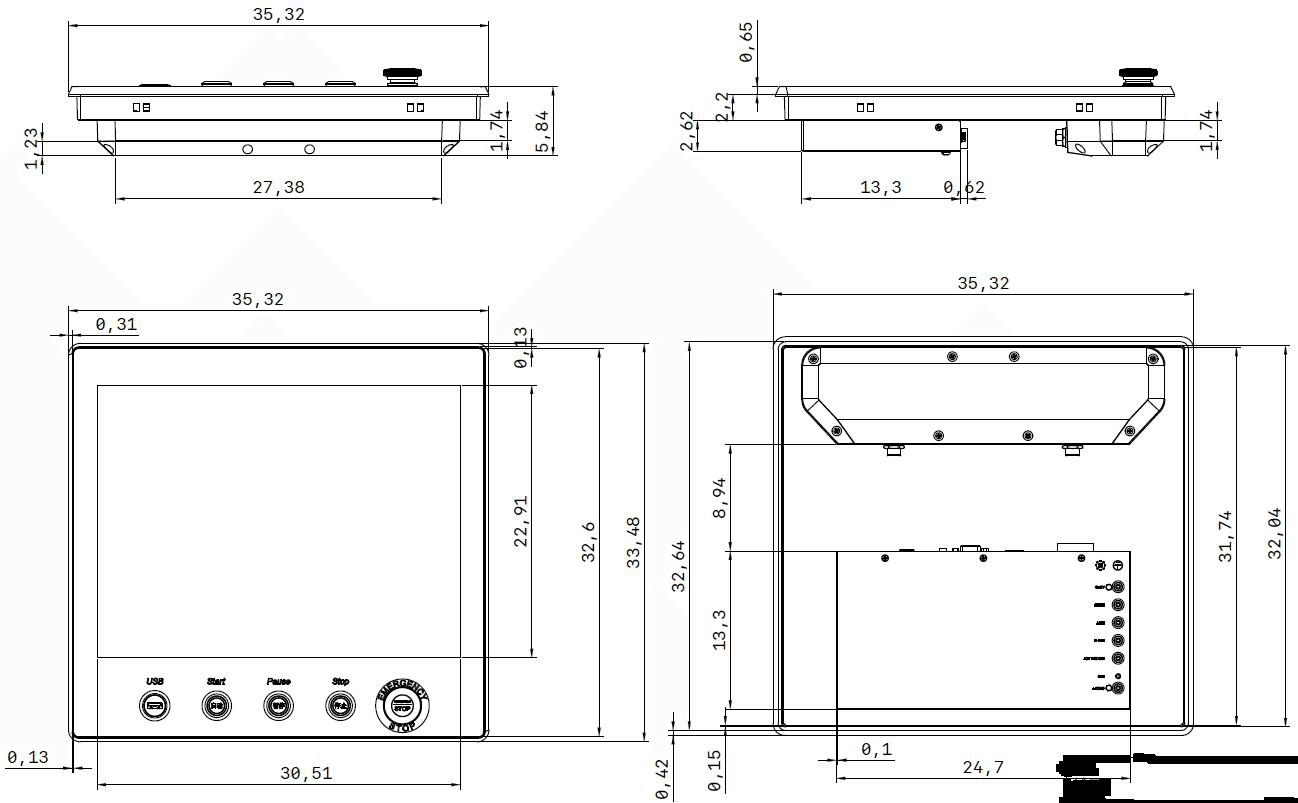

Dimensions
Download Link
Click here to download Datasheet
